Scissor Lift

Scissor Lifts Range — ELEVEX Rentals | Palod Group

Electric Scissor Lifts

COMPACT 8M

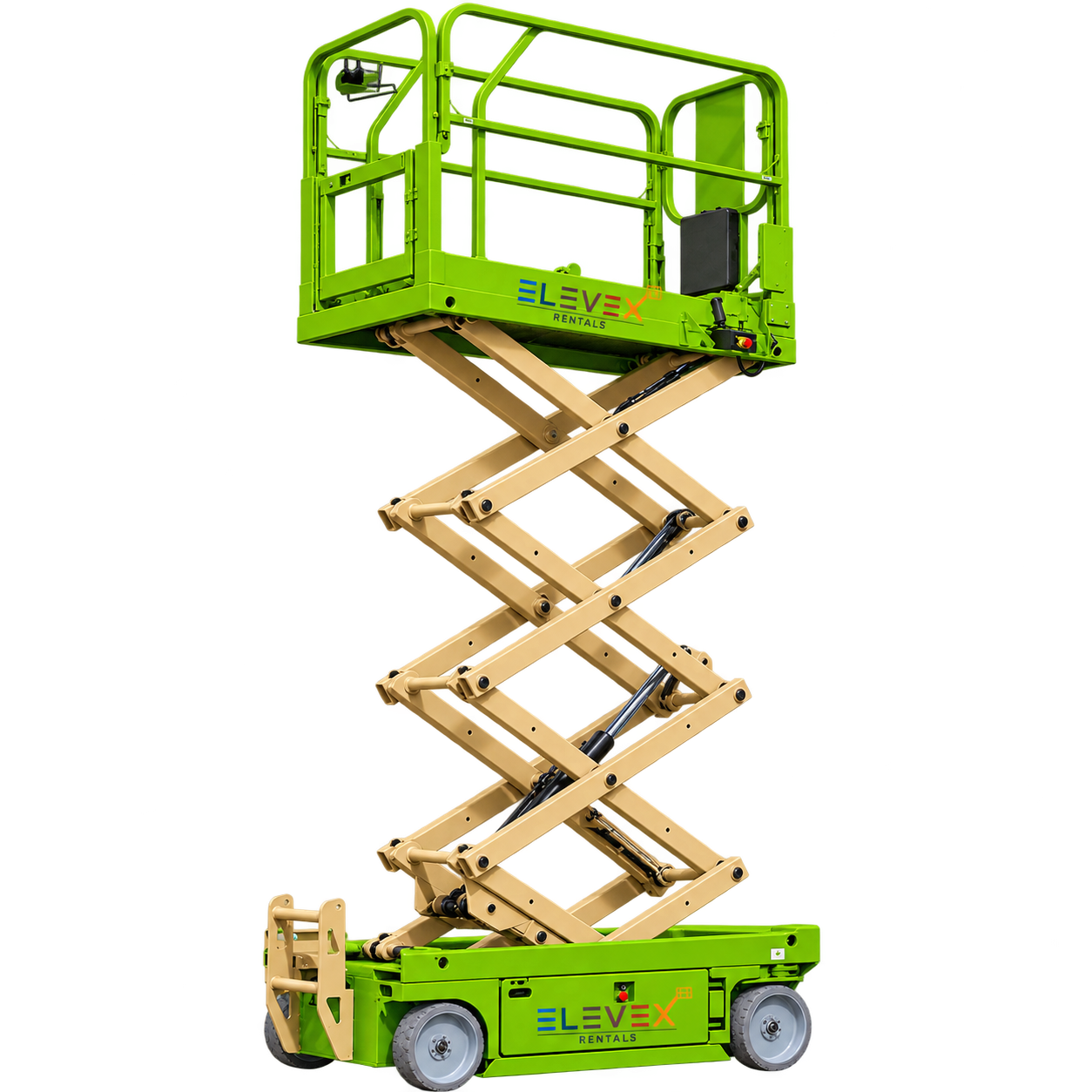

8M Electric Scissor Lift
ELECTRIC SCISSOR LIFT

8M

Compact, zero-emission 7.9m electric scissor lift designed for flat & narrow indoor spaces.

Max Working Height7.9 m (25 ft 11 in)
Rated Workload230 kg (507 lbs)
Machine Weight1,390 kg
Power System24V DC Electric
VIEW FULL SPECS
MID REACH 10M

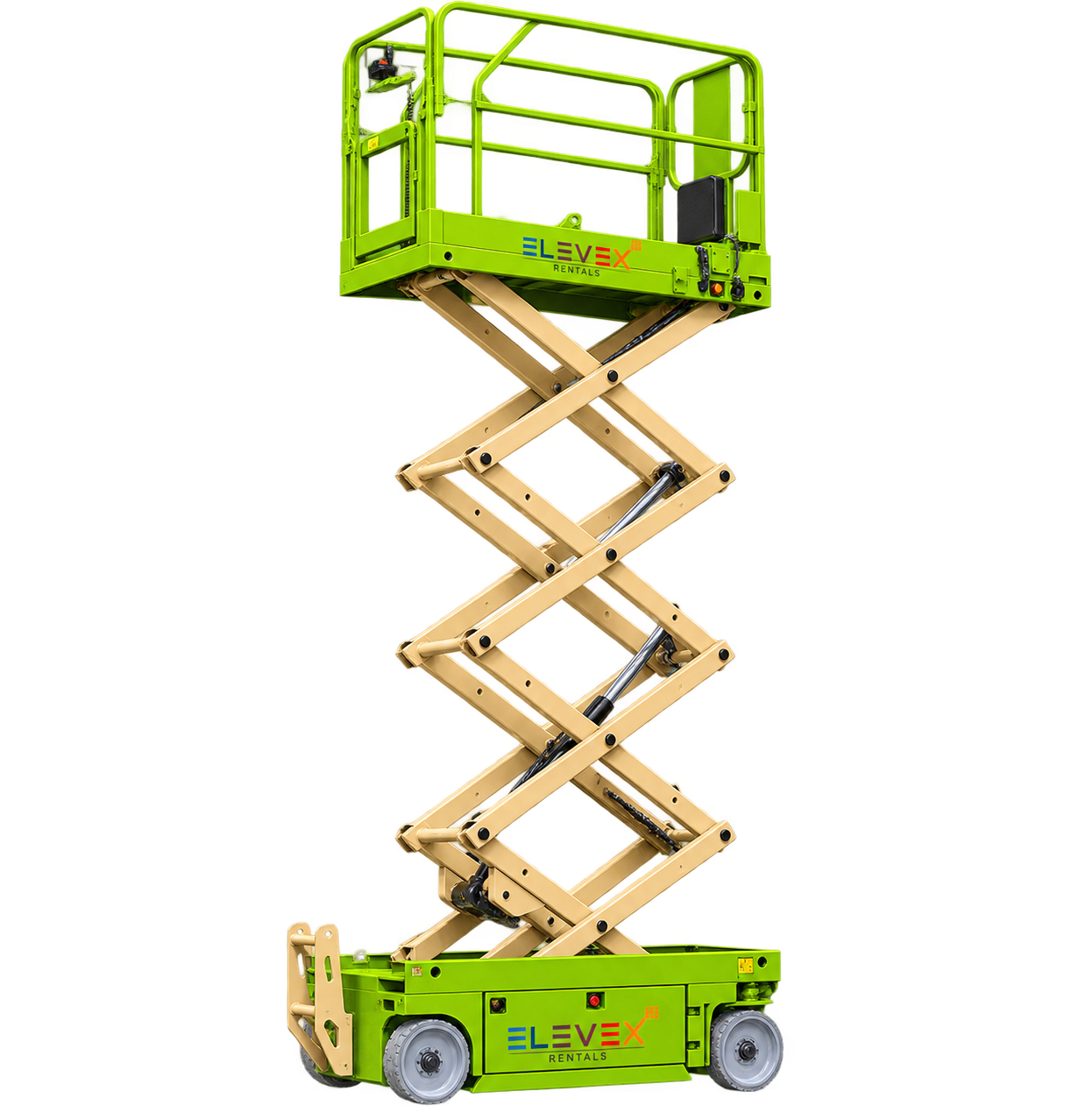

10M Electric Scissor Lift
ELECTRIC SCISSOR LIFT

10M

Self-propelled 10.1m electric scissor lift with 450kg heavy capacity and non-marking tires.

Max Working Height10.1 m (33 ft 2 in)
Rated Workload450 kg (992 lbs)
Machine Weight2,440 kg
Power System24V DC Electric
VIEW FULL SPECS
POPULAR 12M
12M Electric Scissor Lift
ELECTRIC SCISSOR LIFT

12M

High-performance 12m electric scissor lift with 320kg payload capacity for construction & facility tasks.

Max Working Height12 m (39 ft 4 in)
Rated Workload320 kg (705 lbs)
Machine Weight2,920 kg
Power System24V DC Electric
VIEW FULL SPECS
HIGH REACH 14M

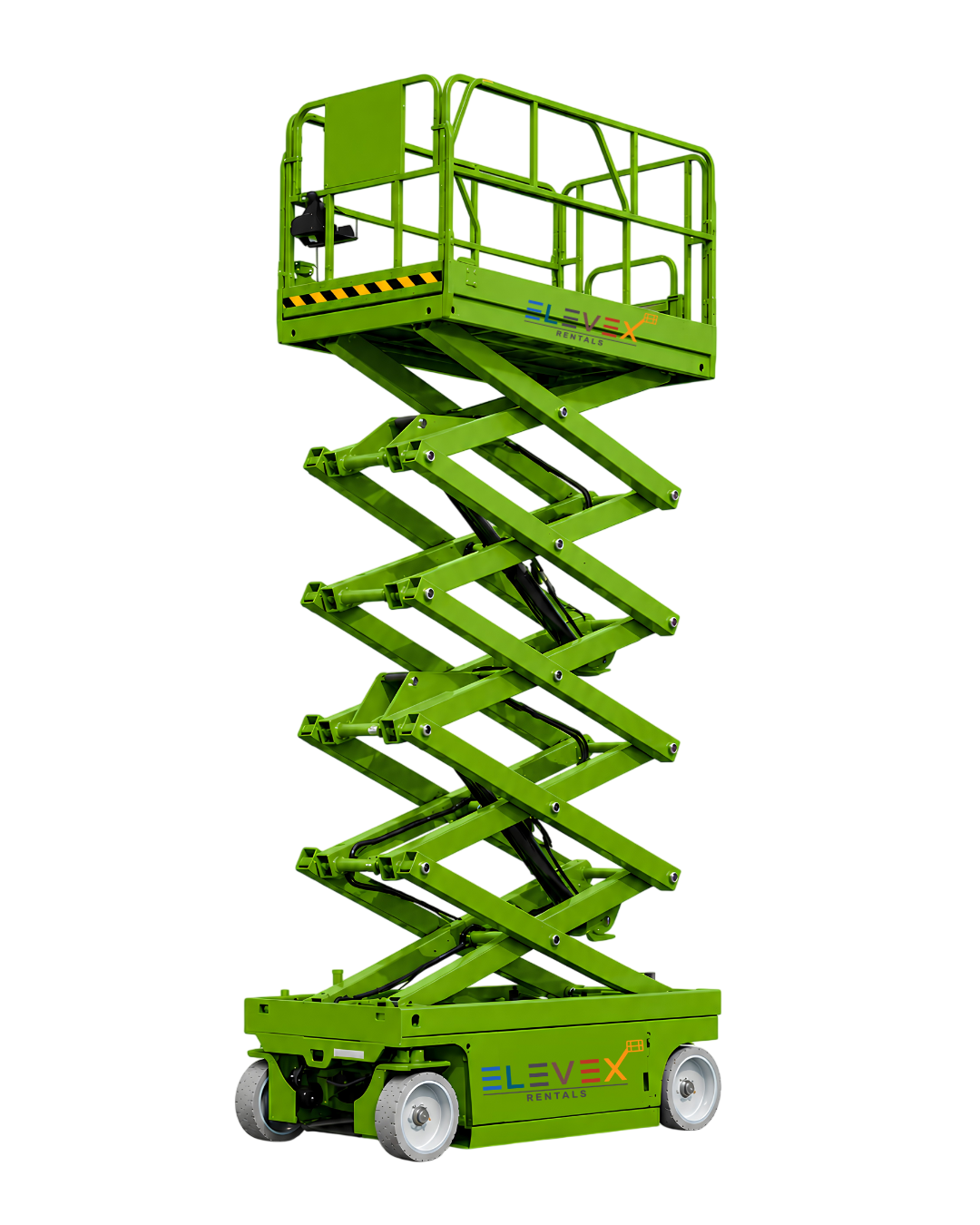

14M Electric Scissor Lift
ELECTRIC SCISSOR LIFT

14M

14m working height electric scissor lift with automatic pothole protection and smooth proportional control.

Max Working Height14 m (45 ft 11 in)
Rated Workload320 kg (705 lbs)
Machine Weight2,860 kg
Power System24V DC Electric
VIEW FULL SPECS
MAX REACH 16M

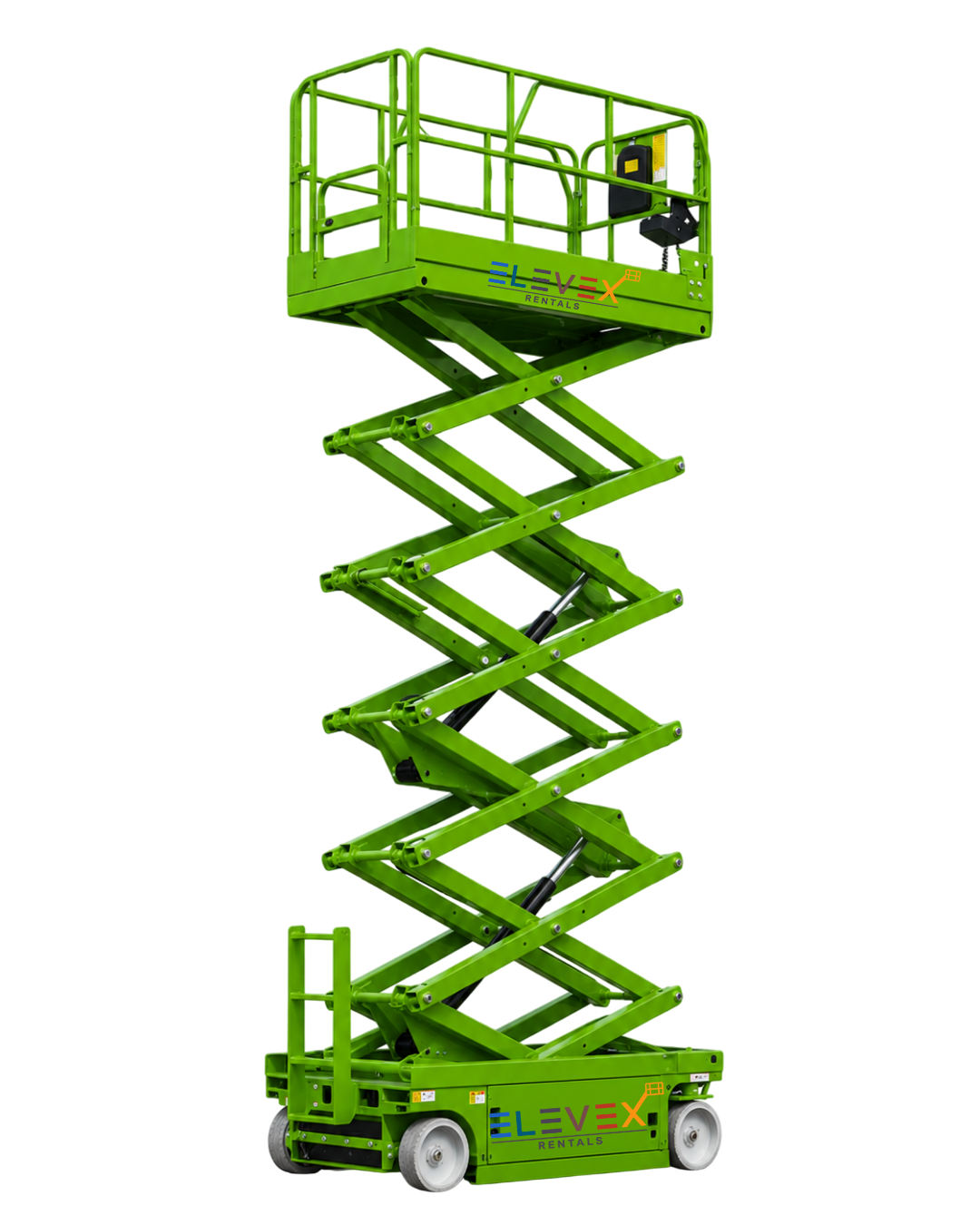

16M Electric Scissor Lift
ELECTRIC SCISSOR LIFT

16M

Maximum reach 15.8m electric scissor lift with heavy-duty platform and long battery endurance.

Max Working Height15.8 m (51 ft 10 in)
Rated Workload320 kg (705 lbs)
Machine Weight3,538 kg
Power System24V DC Electric
VIEW FULL SPECS
ELECTRIC SCISSOR LIFT

8M

COMPACT 8M

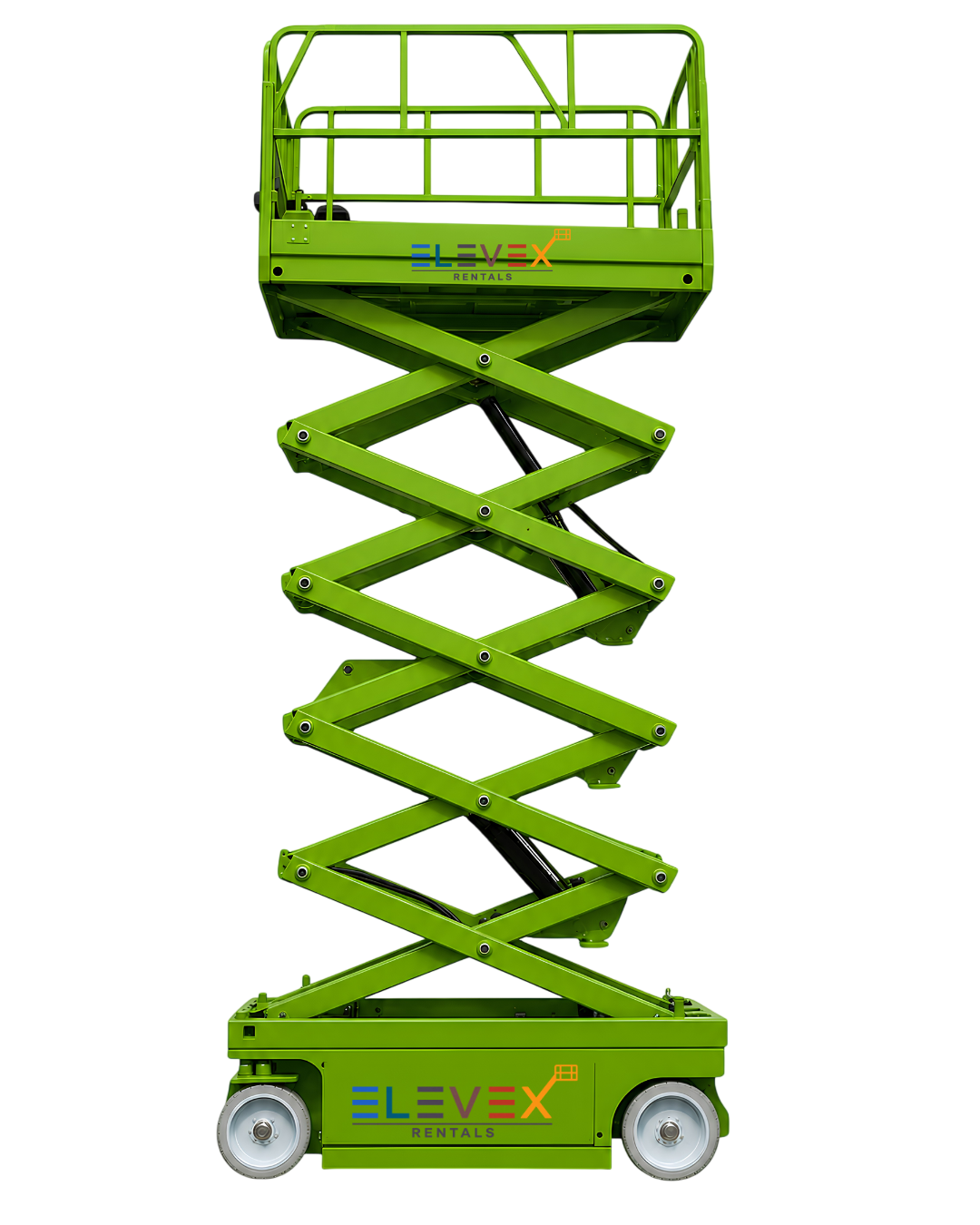

Scissor Lift Viewer

Electric drive with zero-emission and low noise. Compact and maneuverable design, suitable for flat and narrow spaces.

FULL TECHNICAL SPECIFICATIONS

Max Working Height7.9 m (25 ft 11 in)
Max Platform Height5.9 m (19 ft 4 in)
Rated Workload230 kg (507 lb 1 oz)
Workload (Extended Platform)100 kg (220 lb 7 oz)
Platform Dimensions (L x W)1.7m x 0.76m (5 ft 7 in x 2 ft 6 in)
Platform Extension Length0.86 m (2 ft 10 in)
Machine Dimensions (L x W x H)1.84m x 0.76m x 2.2m (1.78m folded)
Min Ground Clearance (Stowed/Raised)0.08 m / 0.02 m
Wheelbase1.32 m (4 ft 4 in)
Tire Specification0.32 x 0.1 m (Non-marking)
Total Machine Weight1,390 kg (3,064 lb)
Drive & Steering System2WD / 2-Wheel Steering
Driving Speed (Stowed/Raised)3.5 km/h / 0.8 km/h
Turning Radius (Inner/Outer)0 m / 1.5 m
Gradeability (Climbing)25%
Allowable Working Angle3° / 1.5°
Power System & Battery24V DC / 25.6V DC (230 Ah/200 Ah)
GET A QUOTE DOWNLOAD BROCHURE

Need Expert Advice on Electric Scissor Lifts?

Not sure whether the 8m, 10m, 12m, 14m or 16m Scissor Lift fits your site layout? Talk to our certified engineers.

TALK TO AN EXPERT +91 9000 43 9056
Enlarged View
ELECTRIC SCISSOR LIFT

8M

COMPACT 8M
Scissor Lift

Electric drive with zero-emission and low noise. Compact and maneuverable design, suitable for flat and narrow spaces.

SPECIFICATIONS

Max Working Height7.9 m (25 ft 11 in)
Max Platform Height5.9 m (19 ft 4 in)
Rated Workload230 kg (507 lb 1 oz)
Workload (Extended Platform)100 kg (220 lb 7 oz)
Platform Dimensions (L x W)1.7m x 0.76m (5 ft 7 in x 2 ft 6 in)
Platform Extension Length0.86 m (2 ft 10 in)
Machine Dimensions (L x W x H)1.84m x 0.76m x 2.2m (1.78m folded)
Min Ground Clearance (Stowed/Raised)0.08 m / 0.02 m
Wheelbase1.32 m (4 ft 4 in)
Tire Specification0.32 x 0.1 m (Non-marking)
Total Machine Weight1,390 kg (3,064 lb)
Drive & Steering System2WD / 2-Wheel Steering
Driving Speed (Stowed/Raised)3.5 km/h / 0.8 km/h
Turning Radius (Inner/Outer)0 m / 1.5 m
Gradeability (Climbing)25%
Allowable Working Angle3° / 1.5°
Power System & Battery24V DC / 25.6V DC (230 Ah/200 Ah)
